Rumah / Produk / TINGKAT / Pemancar level submersible seri PB8600
Lebih banyak topik

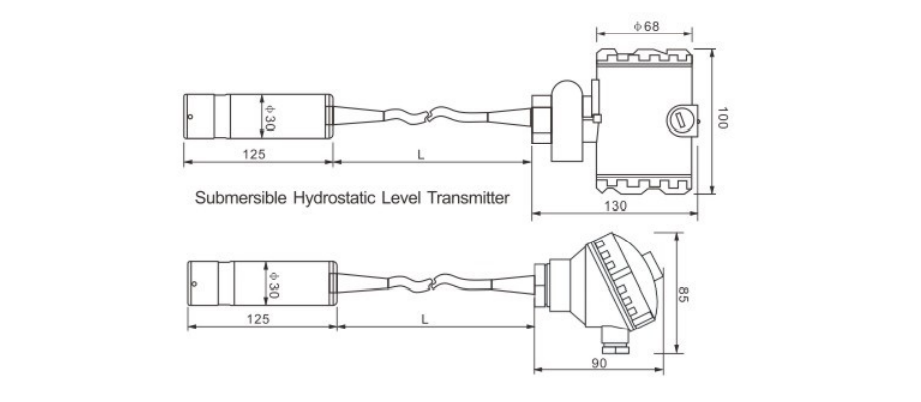

Pemancar level submersible seri PB8600

Pemancar tingkat hidrostatik submersible seri PB8600 terdiri dari sensor, kabel panduan udara, silinder stainless steel dan sebagainya. Uji ketinggian level cairan dengan mengukur tekanan pada posisi sensor, dan ubah ketinggian level cairan menjadi output sinyal listrik standar. Performa yang stabil, keandalan yang baik, masa pakai yang lama, desain sirkuit internal memenuhi persyaratan tahan ledakan yang aman secara intrinsik, dan kinerjanya yang luar biasa dapat sepenuhnya menggantikan pemancar level cairan statis terendam (atau terendam) yang diimpor, terutama digunakan untuk mengukur air, Tinggi level atau kedalaman minyak dll.
  • Akurasi: 0,5%F·S
  • Rentang pengukuran: 0...5m hingga 0...1500m
  • Linearitas: lebih tinggi dari 0,2%F·S
  • Penyimpangan suhu:
  • Stabilitas: lebih tinggi dari 0,5%F·S selama 1 tahun
  • Waktu respons: 10mS
  • Catu daya: 12 hingga 36VDC
  • Keluaran: 4...20mADC
  • Resistansi beban: 0~600Ω
  • Suhu cair: -10...60℃
  • Temp kompensasi: -10...60℃
  • Suhu penyimpanan: -45...125℃
  • Posisi pemasangan: langsung ke bagian bawah cairan
  • Bahan perumahan: 304 stainless steel atau 316 stainless steel
  • Bahan diafragma: baja tahan karat 316L
  • Bahan kabel pernapasan: polietilena atau PTFE
  • Berat: Pipa baja tahan karat (G1): sekitar 300g Kabel pernapasan (G2): sekitar 65g/m Kotak sambungan (G3): sekitar 300-700g
  • Berat kotor(G): G=G1 G2*panjang(m) G3
  • Konsumsi daya: <5W(24VDC)
Tentang kami

Ningbo Qingyang Automation Technology Co., Ltd.

Pabrik Instrumen Otomasi Yuyao Huangong

Didirikan pada tahun 2000, mengkhususkan diri dalam produk otomasi industri. Setelah tahun pembangunan, telah mengembangkan serangkaian stabil dan dapat diandalkan, terjangkau, cocok untuk semua jenis pengukuran otomasi industri dan kontrol tekanan pemancar, pemancar suhu dan pemancar tingkat.

  • 20+

    Pengalaman bertahun-tahun

  • 1000+ �O

    wilayah perusahaan

  • 200+

    Anggota tim

  • 30+

    Negara ekspor

Menghormati

Pusat Berita
Perpanjangan pengetahuan industri dari kategori ini
Main features of PB8600 series submersible level transmitter
1.Hermetically sealed stainless-steel housing: The transmitter's housing is designed to withstand submersion in corrosive or harsh liquids, ensuring long-term reliability in challenging environments.
2.High-resolution pressure sensing: The PB8600 employs a cutting-edge pressure sensor with a resolution of 0.01% of full scale, providing precise level measurements, even in applications with small level changes.
3.Temperature compensation: The transmitter's advanced temperature compensation technology ensures accurate readings across a wide temperature range, from -20°C to 80°C, eliminating errors caused by temperature fluctuations.
4.User-friendly interface: The PB8600 comes with a user-friendly LCD display and intuitive push-button configuration, enabling easy calibration and setup without the need for complex programming or additional software.
Applications of PB8600 series submersible level transmitter
1.Water and wastewater management: The PB8600 Series is widely used in municipal water treatment plants to monitor water levels in reservoirs and tanks, facilitating efficient water distribution and flood control.
2.Oil and gas exploration: In offshore drilling platforms, the PB8600 measures fluid levels in storage tanks, ensuring safe and accurate monitoring of valuable resources.
3.Chemical processing: Within chemical processing plants, the transmitter is utilized to measure liquid levels in various reactors and vessels, enabling precise control over chemical reactions and preventing potential hazards.
4.Food and beverage production: The PB8600 is employed in food and beverage manufacturing facilities to monitor ingredient levels and manage inventory, ensuring uninterrupted production processes and reducing material wastage.
5.Environmental monitoring: In environmental applications, the transmitter is used for monitoring water levels in lakes, rivers, and groundwater wells, aiding in flood forecasting, drought management, and ecosystem preservation.
Installation and Maintenance of PB8600 series submersible level transmitter
Installation example: The compact design of the PB8600 allows for easy integration into existing systems, and its multiple mounting options accommodate various installation requirements. For instance, it can be installed in a sump pump for continuous level monitoring in a wastewater treatment plant.
Maintenance example: The robust construction of the PB8600 reduces the need for frequent maintenance. In a chemical processing plant where corrosive liquids are involved, the transmitter's durable stainless-steel housing minimizes wear and tear, resulting in lower maintenance costs.
